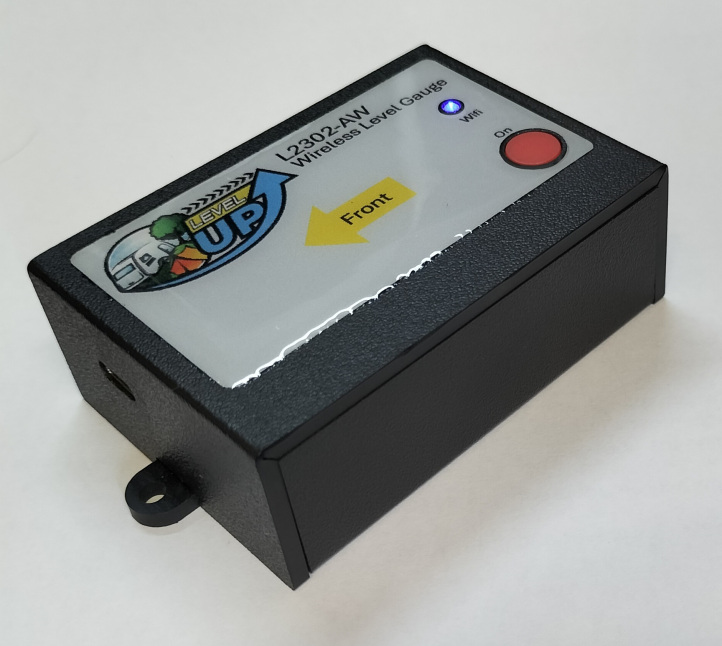

Wireless Level Gauge model L2302-AW
Level-Up Wireless Level Gauge becomes very handy in the leveling process, especially pulling the caravan onto a leveling block. The unit is installed inside the caravan on a surface that represents a level situation. After switching it on, it creates a wifi hotspot to which you connect your mobile device. In your phones browser scan a QR code and Level Up serves the user interface page. It shows the left/right and front/back tilt angles in degrees on two analogue gauges. As you move the caravan you will see the gauges on your mobile device respond. This allows you to watch the levels inside your car when pulling onto a leveling block. Or simply take your phone with you when adjusting the jacks.
Features
-
No downloading of App. The unit use the phones browser for GUI
-
No connection distance confirmation required (between vehicle and caravan). The system uses Wifi which have a much larger distance range than Bluetooth.
-
No caravan measurements required. The unit is providing measurements of angle not distances.
-
No settings required for measurement units (SI and related units use)
-
No settings required for display resolution. Gauges provides analogue displays
-
The unit’s firmware can be upgraded at the manufacturers if upgrades are available, Level-Up support. (support@level-up.org.za)
Videos
Test you mobile phone's display compatibility. Open this page using your phone's browser and click on the test button. (level-up GUI will not display correctly on PC)
Specifications
|
Measurement |
||
|
|
Measurement parameter |
Tilt angle in degrees for left/right and front/back coordinate plane |
|
|
Range |
-3° to +3° |
|
|
Resolution |
Analogue gauges |
|
|
Accuracy |
± 0.5° * |
|
|
Measurement time |
1.3 s |
|
Communication |
||
|
|
Communication medium |
Wifi protocol 802.11b/g/n Wi-Fi SOC |
|
|
Frequency range |
2.4 GHz |
|
|
Range |
Up to approximately 50m line of sight |
|
Graphical User Interface |
||
|
|
Aspect ratio |
The GUI is designed to suit mobile devices with screens with aspect ration of between 16:9 and 20:9 |
|
|
Browser |
Compatible with Android, Chrome, Firefox, IE, Edge, Opera, Safari or similar |
|
|
Settings |
The only settings required is the hotspot name and password. On 1st access or after reset the user will be requested to enter these. |
|
|
Graphical User Interface |
|
|
|
||
|
|
||
|
|
||
|
|
||
|
Power |
||
|
|
Battery |
Lithium Ion 1000mA |
|
|
Charging |
5V USB C port |
|
|
Capacity |
On mode: 10 hours Sleep mode: > 4000 hours |
|
Dimensions |
||
|
|
L x H x W |
97mm x 29mm x 56mm |
|
|
Weight |
105g |
